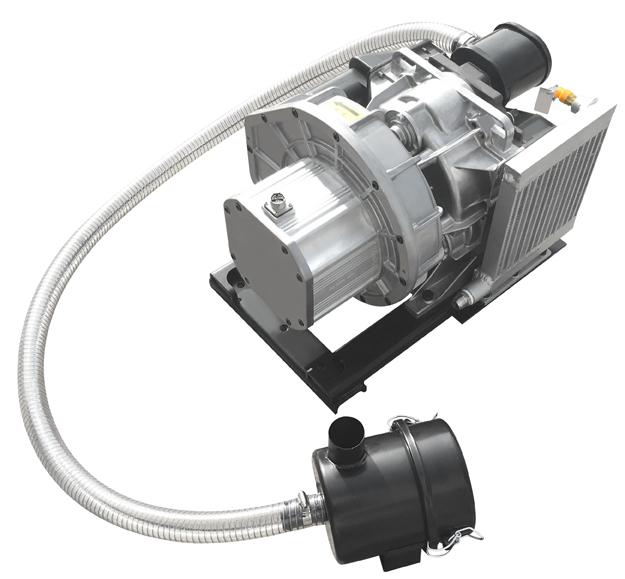

Vehicle-mounted scroll oil-free air compressor
Generalize：A reliable, high quality compressed air source is a significant part in the whole range of applications on vehicles, such as New Energy Vehicles, Electric Buses, Electric Vehicles, the EMU, Subway and Light Rail Vehicles. Adekom vehicle-mounted scroll oil-free air compressor, the ideal air supply equipment for various of vehicles and rail vehicles, including Pneumatic Brake Systems, Air suspension Systems, Door Operation, Pneumatic wiper systems, Pantograph lifting, etc.
Vehicle-mounted scroll oil-free air compressor Principle
Rotary scroll oil free compression is realized by rotational motion of static plate and moving plate.

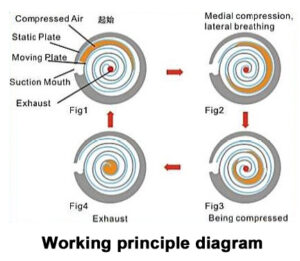

1.The air is sucked in from the suction port at the outside of the fixed scroll. The air enclosed in the confined space is compressed towards the center when the compression chamber is becoming smaller due to the rotation movement. The compressed space becomes smallest at the center, and the air compressed to the highest limit is discharged out from the central exhaust port. The movement Figure 1-4 (Suction-Compression-Exhaust) is repeated thereby to produce compressed air without pulsation.
2. Vehicle-mounted scroll oil-free air compressor applications:
A reliable, high quality compressed air source is a significant part in the whole range of applications on vehicles, such as New Energy Vehicles, Electric Buses, Electric Vehicles, the EMU, Subway and Light Rail Vehicles. Adekom vehicle-mounted scroll oil-free air compressor, the ideal air supply equipment for various of vehicles and rail vehicles, including Pneumatic Brake Systems, Air suspension Systems, Door Operation, Pneumatic wiper systems, Pantograph lifting, etc.
Features
Reliability
Compressed air system without oil and hydrocarbon pollution, extending the valve and cylinder fittings and other parts service life;
Maintenance-free
Completely solve the problem of lubricating oil emulsification for compressors, eliminating the issue of machine performance that aiming at the cause of lubricating oil temperature;
Low noise levels
The scroll compressor’s simplicity requires only the stationary and the orbiting scroll to compress gas. And it has a continuous compression process and has no valves to create valve noise. This creates very low gas-pulsation noises and very little vibration.
High reliability
Less moving parts, Compact and continuous duty operation, high reliability;
Virtually maintenance-free operation
Long Maintenance Period, simple routine maintenance that only need to replace the intake air filter;
Specifications
| Model | KFR3010 | KFR409 | KFR609 | ||
| Capacity FAD | m³/min | 0.32 | 0.4 | 0.6 | |
| Rated discharge pressure | bar(g) | 8 | |||
| Max. discharge pressure | bar(g) | 9.5 | 9 | ||
| Noise level | dB(A） | ≤68 | ≤72 | ||
| Transmission | Direct | ||||
| Main Motor | Power | kW | 3 | 4 | 5.5 |
| Voltage/Frequency | AC 220V/380V 50Hz | ||||
| Dimensions | L | mm | 470 | 470 | 835 |
| W | mm | 360 | 360 | 500 | |
| H | mm | 330 | 330 | 380 | |
| Weight | kg | 32 | 34 | 78 | |
| Discharge air pipe connection | mm | M22x1.5 | M22x1.5 | M33x2 | |
Remark：1.Unit performance measured according to ISO 1217, Ed.3, Annex C-1996;
2.The noise value refers to the measured value at the time of the full load operation in non-sound chamber (positive 1.5m, high 1m) ;
3.If all the technical data subject to change, there is no notice; if in doubt, please refer to the manufacturers or dealers
Vehicle-mounted scroll oil-free air compressor Application
A reliable, high quality compressed air source is a significant part in the whole range of applications on vehicles, such as New Energy Vehicles, Electric Buses, Electric Vehicles, the EMU, Subway and Light Rail Vehicles. Adekom vehicle-mounted scroll oil-free air compressor, the ideal air supply equipment for various of vehicles and rail vehicles, including Pneumatic Brake Systems, Air suspension Systems, Door Operation, Pneumatic wiper systems, Pantograph lifting, etc.
Customer Case
