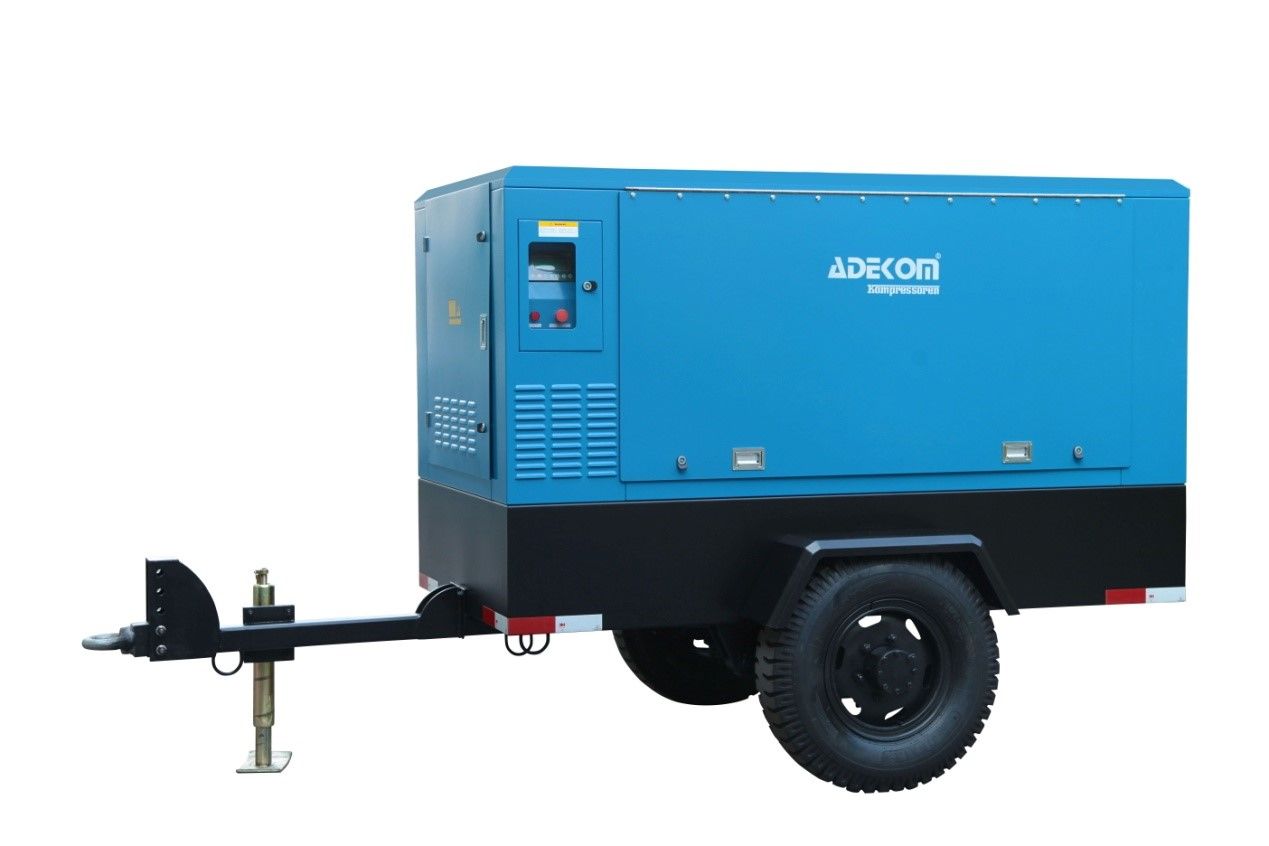

PUE Series Electric Driven Portable Screw Air Compressor
Thông tin bán hàng
- Chính sách: Dùng thử 7 ngày miễn phí
- Bảo hành: tháng
- Thanh toán: Thanh toán khi nhận hàng
- Vận chuyển: Miễn phí toàn quốc
- Lắp đặt: Miễn phí lắp đặt tại các đại lý uỷ quyền trên toàn quốc
Khuyến mại hot nhất:
PUE Series Electric Driven Portable Screw Air Compressor
Generalize：PUE series electric driven portable screw air compressors truly come into their own in work environments where quiet and exhaust free conditions are required. These environmentally-friendly compressors therefore elegantly avoid the restrictions that apply to the use of combustion engines.
Features
Energy Saving Electric Motor
The special modified electric motor can achieve high efficiency of 95.2% that brings an unprecedented level of energy saving. High quality high speed bearings from ‘SKF’ are fitted for continuous trouble-free operation.
High Efficiency Aftercool
The enlarged high efficiency oil and air combination air-cooled aftercooler is specifically designed for tropical climate to assure all components work perfectly even under high ambient temperature and humidity summer season. All design data are referenced at 46°C ambient temperature.
State-of-the-art Compressor Airend
Optimal energy efficiency and outstanding reliability is achieved from patented design third generation non-symmetric robust rotors, superior bearings and oil seal that help the compressor airend to operate with good dynamic balance, low vibration, low rotation speed and low noise level.
Intelligent PLC Control Panel
The simple-to-use automatic electric control panel continuously monitors and displays overall system performance status with pro-active service indicationa, alarms for malfunctions and safety shutdowns. Advanced sequence control for multi-units installation and remote control as option.
Reliable Automatic Control Box
Electronic components of the IP54 automatic control box such as relays, contractors and overload relays are from named brand – Siemens to provide safe and reliable compressor control solution.
Specifications
| Model | PUE55 | PUE75 | PUE90 | PUE110 | PUE132 | PUE160 | PUE185 | ||
| Discharge capacity /Discharge pressure | m³/min /bar(g) | 13.20/7 | 13.20/7 | 16.50/7 | 21.00/7 | 24.10/7 | 29.50/7 | 32.00/7 | |
| 10.10/8 | 12.96/8 | 16.20/8 | 20.48/8 | 23.50/8 | 27.80/8 | 31.00/8 | |||
| 8.70/10 | 11.39/10 | 14.00/10 | 17.50/10 | 21.00/10 | 25.00/10 | 28.10/10 | |||
| 7.45/13 | 10.20/13 | 12.10/13 | 14.85/13 | 18.38/13 | 21.50/13 | 25.00/13 | |||
| Cooling method | Air-cooled | ||||||||
| Noise level | dB(A) | 75±3 | 78±3 | 80±3 | |||||
| Motor | Power | KW | 55 | 75 | 90 | 110 | 132 | 160 | 185 |
| Speed | rpm | 1480/2970 | |||||||
| Starting method | Star-Delta Starting | ||||||||
| Voltage/Frequency | 220V/380V/440V 50Hz/60HZ | ||||||||
| Dimensions | L | mm | 3850 | 4000 | 4200 | 4500 | |||
| W | mm | 1750 | 1820 | 1950 | 1950 | ||||
| H | mm | 2000 | 2000 | 2100 | 2200 | ||||
| Weight | kg | 1700 | 2200 | 2750 | 3000 | 3100 | 3800 | 3900 | |
| Discharge pipe connections | inch | 3xG3/4″,1xG2″ | 3xG1-1/4″,1xG2-1/2″ | ||||||
Notes:
(1) Measured and tested in accordance with ISO1217, 3rd Edition, Annex C (1996).
(2) Noise level measured in accordance with Pneurop/Cagi PN8NTC test code, error 3dB(A).
(3) Adekom may make improvements and/or changes in the appearance and/or specifications without notice.
Please contact local dealer or manufacturer for more detailed information.
