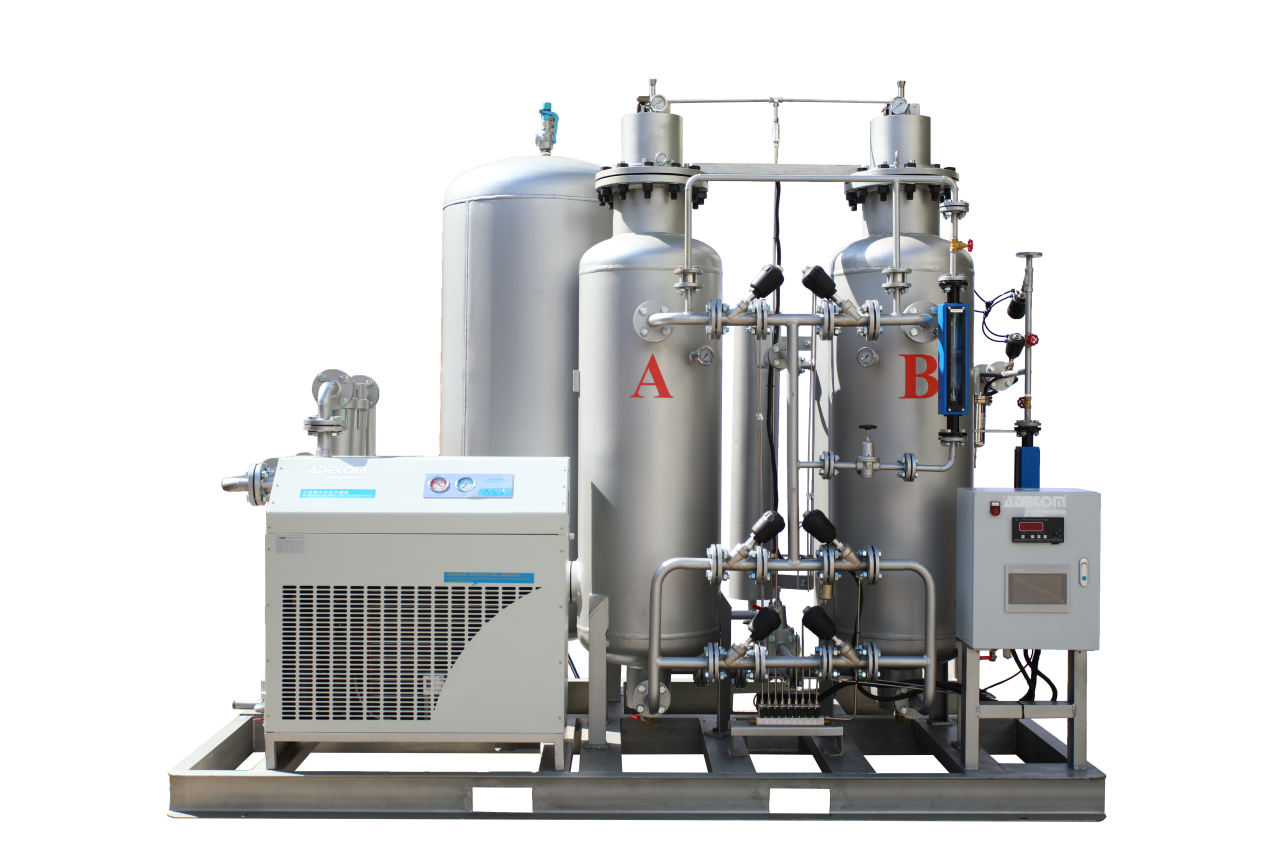

KSO SERIES OXYGEN GENERATOR
Generalize: Adekom KSO series oxygen generator is an automatic equipment for separating oxygen from the air by adsorbing and releasing nitrogen from the air by using zeolite molecular sieve as adsorbent.
KSO SERIES OXYGEN GENERATOR Principle
The PSA oxygen generator uses clean compressed air as the raw material, and the zeolite molecular sieve is used as the adsorbent. The oxygen is obtained at normal temperature by the principle of pressure swing adsorption.
According to the difference of the adsorption amount of oxygen and nitrogen in the air on the surface of the zeolite molecular sieve and the diffusion rate of oxygen and nitrogen in the zeolite molecular sieve, the programmable controller is used to control the opening and closing of the pneumatic valve to realize pressure adsorption and decompression desorption.
The process of completing the separation of oxygen and nitrogen to obtain oxygen of the desired purity.
Features
Technical characteristics
- Unique molecular sieve protective measures so as to lengthen the service life of zeolite molecular sieve.
- Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out, it cannot cause of zeolite molecular sieve pulverization phenomenon, equipped with the limit settlement alarm system, when it reaches the floor level of journey, the equipment will sound and light alarm by itself.
- Configured DCS remote control system interface, it can monitor the system operate condition through the computer.
- Intelligent interlocking Oxygen vent device can guarantee the quality of oxygen
- Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
- Reasonable structure design makes the transportation, sling and installation very convenient.
- Selecting the safe and reliable control components, so the equipment can run stable and reliable,it also has various fault alarm.
- It operates easily, runs stably, and has a high degree of automation, can realize no one operates.
Specifications
| Model | Oxygen
Output (Nm³/h) |
Oxygen
Pressure (bar) |
Effective gas
consumption (Nm³/min) |
Import and export caliber (mm) |
|
| KSO-5 | 5 |
3 ~ 5 |
1.4 | DN20 | DN15 |
| KSO-10 | 10 | 2.6 | DN25 | DN20 | |
| KSO-20 | 20 | 5.3 | DN32 | DN25 | |
| KSO-40 | 40 | 10.5 | DN40 | DN32 | |
| KSO-60 | 60 | 16 | DN65 | DN50 | |
| KSO-80 | 80 | 20.2 | DN80 | DN50 | |
| KSO-100 | 100 | 26 | DN80 | DN65 | |
| KSO-150 | 150 | 35.5 | DN100 | DN65 | |
| KSO-200 | 200 | 51.9 | DN125 | DN80 | |
| More… | ≥200 | ||||
