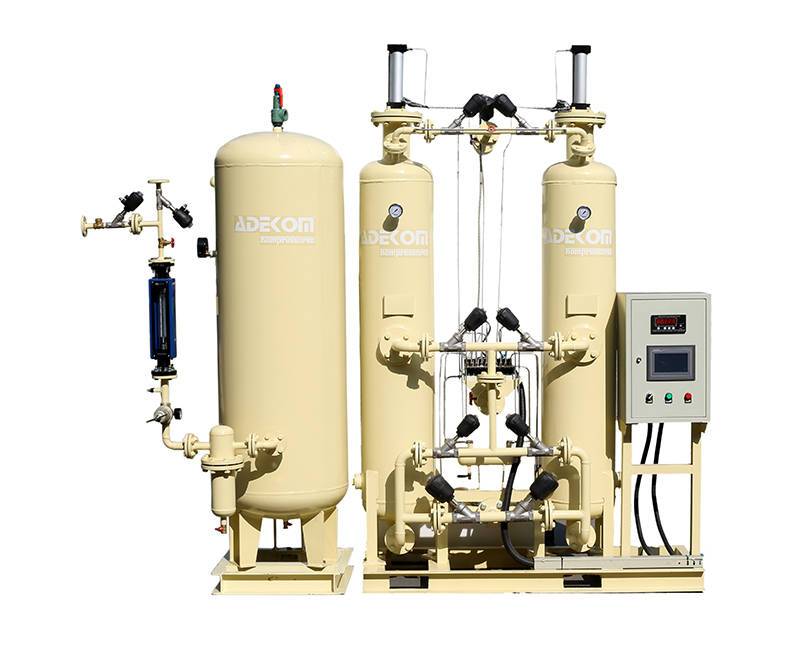

KSN SERIES NETROGEN GENERATOR
Generalize：ADEKOM KSN – series nitrogen generating equipment use the high quality carbon molecular sieve as adsorbent, and utilize PSA principle, acquiring nitrogen gas from compressed air directly.
KSN SERIES NETROGEN GENERATOR Principle
Nitrogen generator is based on the principle of pressure swing adsorption, using carbon molecular sieve as adsorbent to produce nitrogen from air under a certain pressure. The purified and dried compressed air is subjected to pressure adsorption and decompression desorption in an adsorber.
Due to the aerodynamic effect, the diffusion rate of oxygen in the pores of the carbon molecular sieve is much larger than that of nitrogen. The oxygen is preferentially adsorbed by the carbon molecular sieve, and the nitrogen is enriched in the gas phase to form the finished nitrogen.
Generally, two adsorption towers are arranged in the system, one tower adsorbs nitrogen production, the other tower desorbs and regenerates, and the PLC program controller controls the opening and closing of the pneumatic valve to make the two towers alternately cycle, so as to achieve continuous production of high-quality nitrogen.
Features
1、Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve.
2、Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out, it cannot cause of molecular sieve pulverization phenomenon, equipped with the limit settlement alarm system, when it reaches the floor level of journey, the equipment will sound and light alarm by itself.
3、Configured DCS remote control system interface, it can monitor the system operate condition through the computer.
4、Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
5、Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
6、Reasonable structure design makes the transportation, sling and installation very convenient.
7、Selecting the safe and reliable control components, so the equipment can run stable and reliable,it also has various fault alarm.
8、It operates easily, runs stably, and has a high degree of automation, can realize no one operates.
Specifications
| Mobil | Output(Nm³/h) | Effective gas
consumption (Nm³/min) |
Import and export caliber (mm) |
remark | |
| KSN—5A | 5 | 0.4 | DN15 | DN15 | Air purfication system and PSA nitrogen
generator entirety installation |
| KSN—10A | 10 | 0.7 | DN25 | DN25 | |
| KSN—20A | 20 | 1.3 | DN25 | DN25 | |
| KSN—30A | 30 | 2 | DN25 | DN25 | |
| KSN—40A | 40 | 2.6 | DN32 | DN25 | |
| KSN—60 A | 60 | 4 | DN40 | DN32 | Air purfication system and PSA nitrogen
generator Segregate installation |
| KSN—80A | 80 | 5.2 | DN40 | DN40 | |
| KSN—100A | 100 | 6.7 | DN50 | DN40 | |
| KSN—120A | 120 | 7.9 | DN50 | DN40 | |
| KSN—150A | 150 | 10 | DN50 | DN40 | |
Technical parameters of KSN-B nitrogen generator (purity: 99.99%)
| Mobile | Output(Nm³/h) | Effective gas
consumption (Nm³/min) |
Import and export caliber (mm) |
remark | |
| KSN—5B | 5 | 0.5 | DN15 | DN15 | Air purfication system and PSA nitrogen
generator entirety installation |
| KSN—8B | 8 | 0.9 | DN25 | DN15 | |
| KSN—12B | 12 | 1.3 | DN25 | DN15 | |
| KSN—20B | 20 | 2.1 | DN32 | DN25 | |
| KSN—30B | 30 | 2.9 | DN32 | DN25 | |
| KSN—40B | 40 | 4.1 | DN40 | DN25 | Air purfication system and PSA nitrogen
generator Segregate installation |
| KSN—60B | 60 | 6.3 | DN40 | DN32 | |
| KSN—80B | 80 | 8.2 | DN50 | DN40 | |
| KSN—100B | 100 | 11 | DN50 | DN40 | |
| KSN—120A | 120 | 13 | DN65 | DN40 | |
| KSN—160B | 140 | 15 | DN65 | DN50 | |
| KSN—180B | 160 | 17 | DN65 | DN50 | |
Technical parameters of KSN-C nitrogen generator (purity: 99.99%)
| Mobile | Output(Nm³/h) | Effective gas
consumption (Nm³/min) |
Import and export caliber (mm) |
remark | |
| KSN—5C | 5 | 0.8 | DN25 | DN15 | Air purfication system and PSA nitrogen
generator entirety installation |
| KSN—10C | 10 | 1.8 | DN25 | DN15 | |
| KSN—20C | 20 | 3.6 | DN40 | DN15 | |
| KSN—30C | 30 | 5.3 | DN40 | DN25 | |
| KSN—40C | 40 | 7 | DN50 | DN25 | |
| KSN—50C | 50 | 8.7 | DN50 | DN25 | Air purfication system and PSA nitrogen
generator entirety installation |
| KSN—60C | 60 | 10.5 | DN50 | DN32 | |
| KSN—80C | 80 | 13.8 | DN65 | DN40 | |
| KSN—100C | 100 | 17.7 | DN65 | DN40 | |
| KSN—150C | 150 | 26.5 | DN80 | DN40 | |
| KSN—200C | 200 | 35.5 | DN100 | DN50 | |
