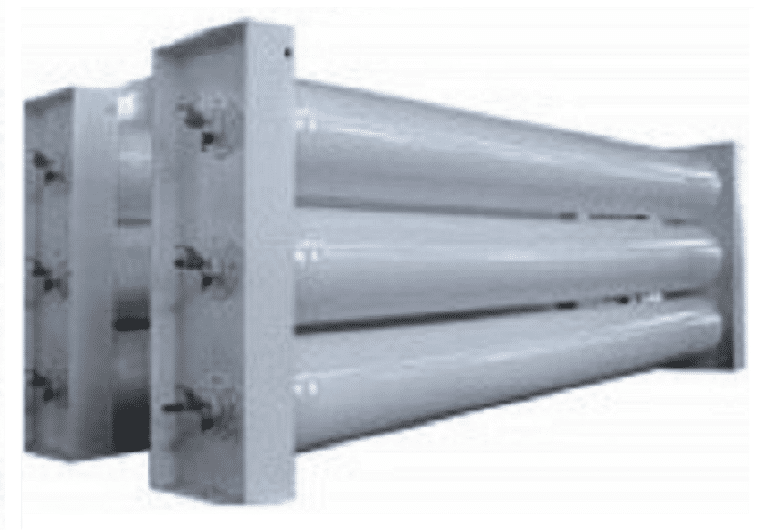

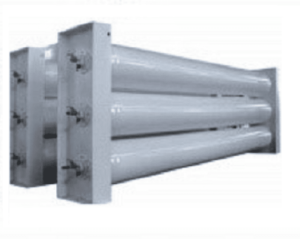

CNG Cylinder –Cascade Type
CNG cascade consists of a series of natural gas cylinders, steel frame, valves, pipelines and highpressure fittings. Priority sequence control panel can also be installed according to customers’ requirements. CNG cascade is used for ground storage of compressed natural gas. The steel cylinders with 250 bar operation pressure are widely used so far. Government regulations require stationary CNG storage cascades to be located outdoors at ground level. A single CNG cylinder can be delivery with bags, while CNG cascade can packaged with wooden cases.
Product Features
1. Seamless structure, with high safety factor.
2. Jumbo size, less cylinder quantity, reducing leaking risk possibility.
3. Multifarious structural concept and horizontal-design allows easy
installation; upright-design takes less space.
4. High unloading speed.
5. Unit type structure, flexible combination, fit for different capacity.
6. We also supplies CNG cylinder cascades for the gas storage. These cascades come with various water capacities and storage pressures to meet specific customer requirements.
Specifications
| Structure Form | 3*1 | 2*2 | 4*1 | 3.2 | 4*2 | 2*2 | 4*1 | 3*2 | 4*2 |
| Nominal Operating Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Geometry Capacity | 2.76 | 3.68 | 3.68 | 5.52 | 7.36 | 4.52 | 4.52 | 6.78 | 9.04 |
| Cylinder Dimension (OD*L)(mm) | ɸ559*4985 | ɸ559*4985 | ɸ559*4985 | ɸ559*4985 | ɸ559*4985 | ɸ559*6000 | ɸ559*6000 | ɸ559*6000 | ɸ559*6000 |
| Cylinder Quantity | 3 | 4 | 4 | 6 | 8 | 4 | 40 | 6 | 8 |
| Equipment Weight (Kg) | 5400 | 6890 | 6880 | 10430 | 13820 | 8150 | 8130 | 12320 | 16340 |
| Equipment Dimension(L*W*H)(MM) | 5217*670*2000 | 5890*1340*1510 | 5790*670*2650 | 5943*1340*2150 | 5890*1340*2800 | 6905*1340*1510 | 6805*670*2650 | 6994*1340*2150 | 6905*1340*2850 |
| Cascade Total Storage Capacity | Nominal Operating Pressure (Mpa) | Cylinder Quantity | Cylinder Water Capacity (L) | Single Cylinder Weight (Kg) | Dimension (mm) | ||
| Water Capacity (L) | Gas Capacity (M3) | Design Height (mm) | Outside Diameter (mm) | ||||
| 2400 | 2.4 | 25 | 48 | 50 | 78 | 1660 | 279 |
| 3000 | 3 | 25 | 60 | ||||
| 6000 | 6 | 25 | 120 | ||||
| 2400 | 2.4 | 25 | 30 | 80 | 109 | 1070 | 279 |
| 3000 | 3 | 25 | 38 | ||||
| 6000 | 6 | 25 | 75 | ||||
